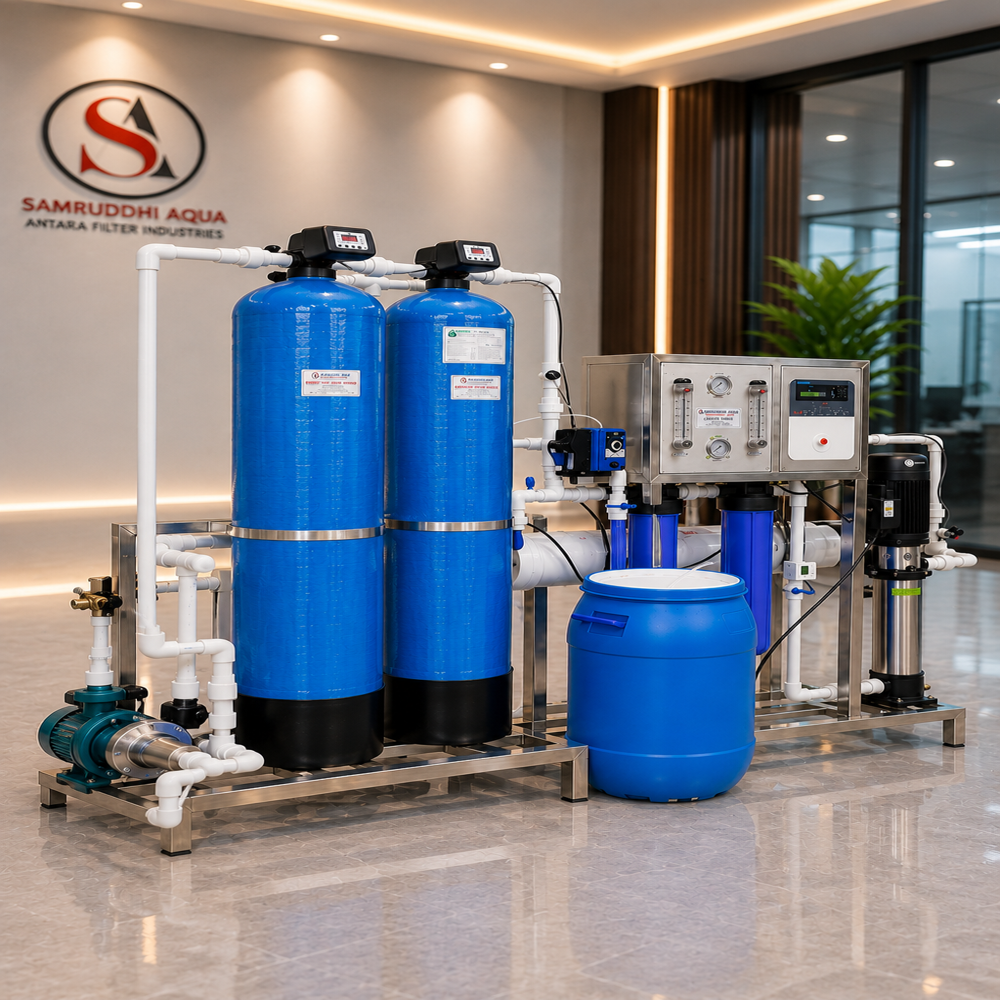

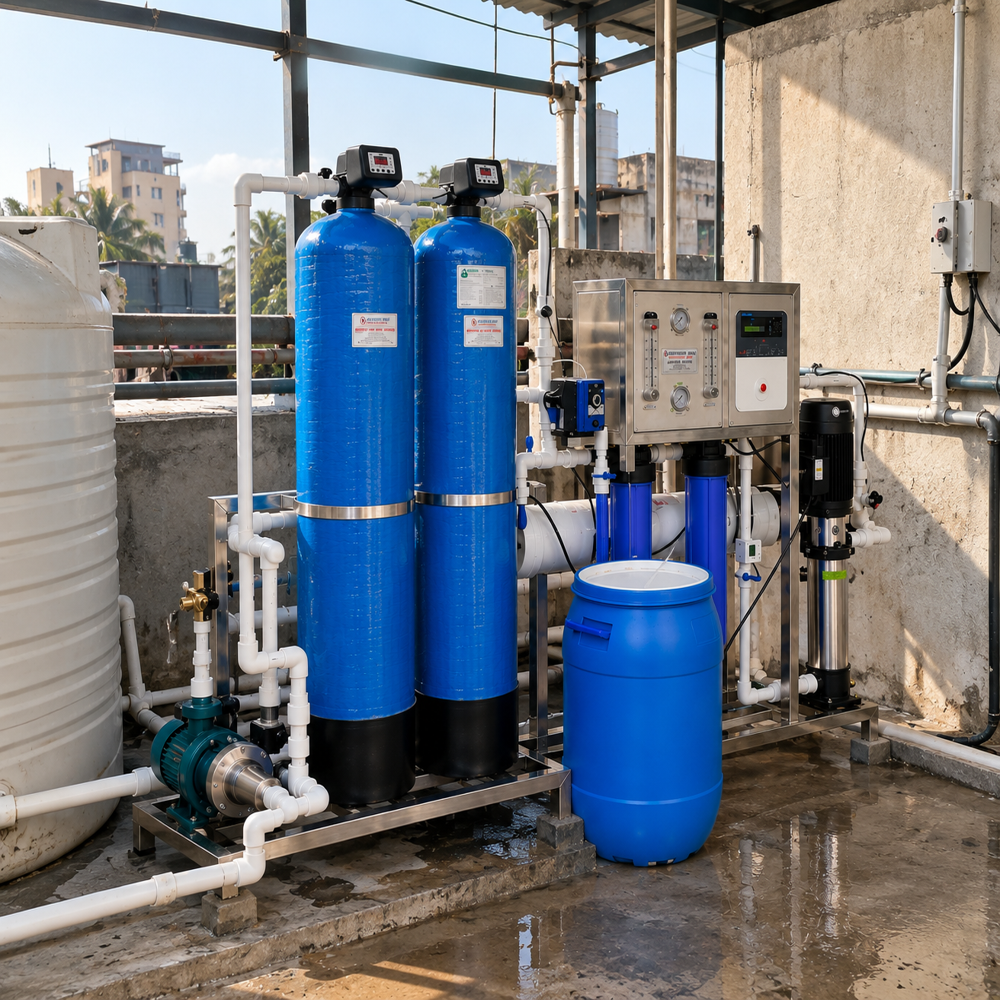

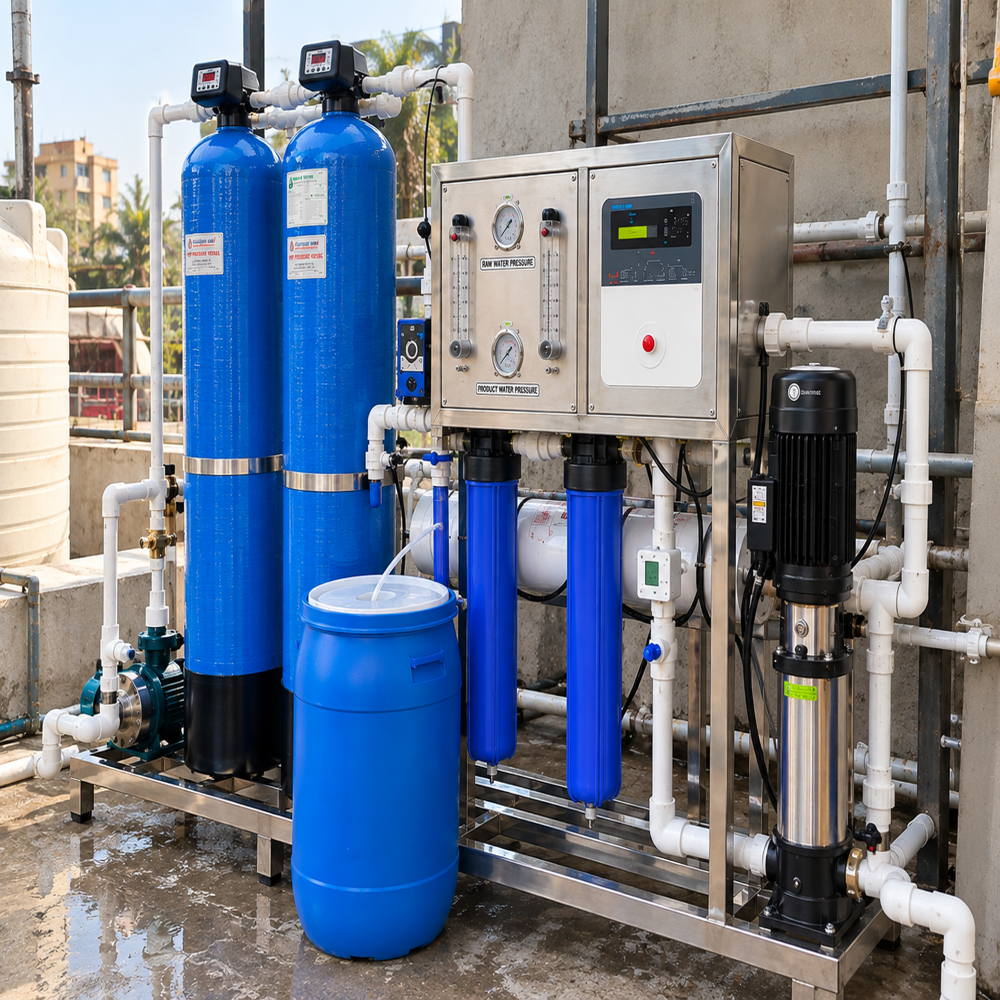

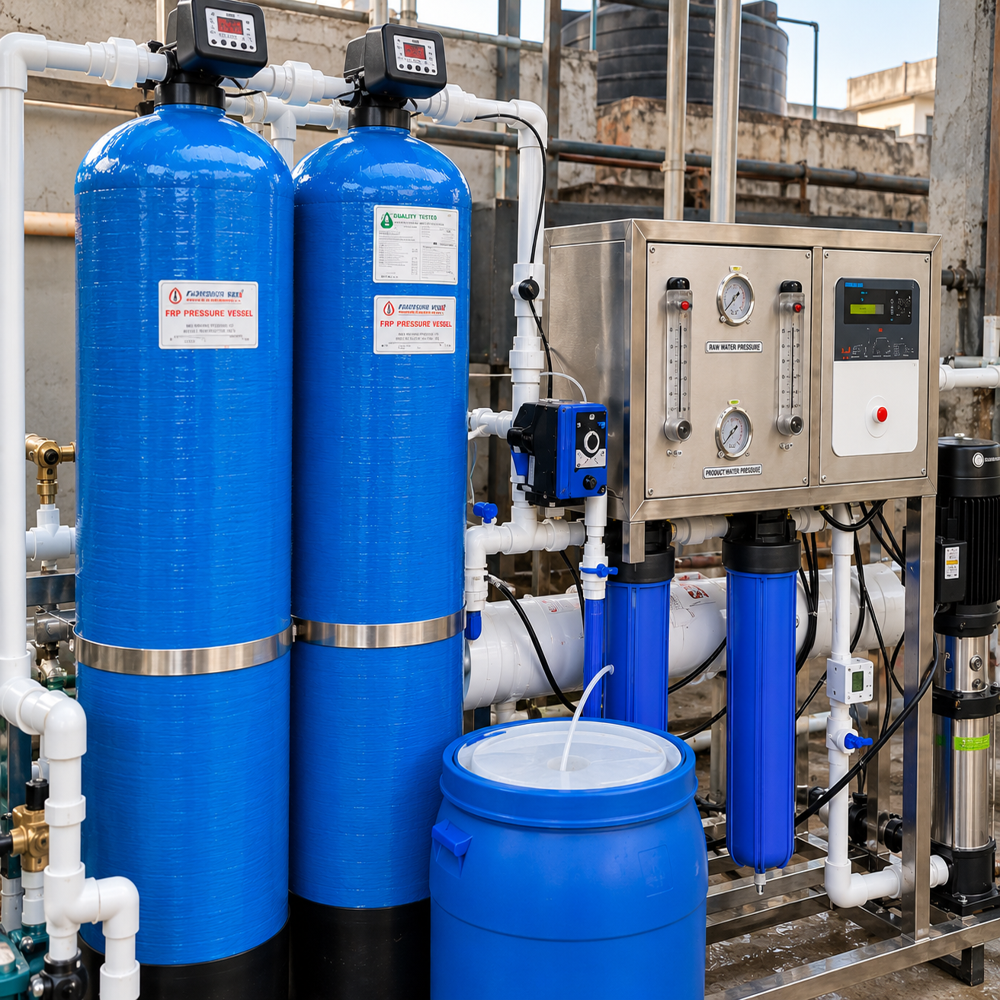

500 LPH RO Plant

Get a Price/Quote

MOQ : 1 Unit

500 LPH RO Plant Specification

Feature
Integrated pre-filtration, Low Pressure Cut-off, High-Quality Membranes, User Friendly Control Panel

Frequency
50 Hz

Ph Level
6.5-8.5 (Adjustable after treatment)

Power Consumption
1.5 to 2.5 kW

Technology
Reverse Osmosis (RO), Multi-Stage Filtration

Pump Type
High-Pressure Centrifugal Pump

Efficiency (%)
Up to 99% contaminant removal

Water in conductivity
<2000 S/cm

Recycle Rate
50-70% (Depending on Input Quality)

Noise Level
Low (<70 dB)

Flow Rate
500 LPH

Usage & Applications
Industrial, Commercial, Institutional, Hospitals, Hotels, Schools

Water Out Conductivity
<30 S/cm

Purity Level
>=95% TDS Removal

Water Source
Borewell, River Water, Municipal Supply, Ground Water

Volume
500 LPH (liters per hour)

Material
FRP, Stainless Steel, PVC

Drive Type
Electric Motor Driven Pump

Product Type
Reverse Osmosis Water Purification Plant

Power Source
Electric

Automatic Grade
Semi-Automatic/Automatic

Voltage
220V-240V AC, 50 Hz

Filter Type
Multi-stage: Sediment, Carbon, Micron, RO Membrane

Capacity
500 LPH

Installation Type
Onsite Installation

Membrane Type
Thin Film Composite (TFC)

Discharge Type
Waste Water Outlet Provided

No. of Membranes
2-4 (Depending on Model Variant)

Safety Features
Auto-flush, Dry run protection, Pressure switch

Net Weight
~180 kg

Product Water Quality
Suitable for Drinking, Process, Laboratory use

System Dimensions
Approx. 1400mm (L) x 700mm (W) x 1600mm (H)

Ambient Working Temperature
5C to 50C

Input Pressure Requirement
1.5 - 3.5 kg/cm2

Operation Mode
Continuous Operation

Storage Tank Option
Available as per requirement

Pretreatment Modules
Activated Carbon, Softener, Sand Filter

Mounting Type
Floor Mounted

Recovery Rate
Up to 50%

Control System
Programmable Logic Controller (PLC) or Analog

500 LPH RO Plant Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Units Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

500 LPH RO Plant About

Discover our top-rated 500 LPH RO Plant, engineered for unparalleled performance and reliability. This cost-effective solution uses high-quality Thin Film Composite (TFC) membranes and multi-stage filtration-including activated carbon, softener, and sand filter-to deliver water with exceptional purity (95% TDS removal). With a stellar recovery rate up to 50% and robust safety features like auto-flush and dry run protection, this semi-automatic/automatic system suits diverse input waters, ensuring consistent, potable water ideal for process, drinking, and laboratory needs. Designed for user convenience and durability, it features an intuitive PLC or analog control system, high-pressure centrifugal pumps, and a user-friendly panel. Its modular construction allows installation flexibility while maintaining minimal operational noise (<70 dB), low power consumption (1.5-2.5 kW), and impressive contaminant removal efficiency (up to 99%). Available with storage tank options to match your requirements.

Competitive Advantages and Diverse Applications

Our 500 LPH RO Plant showcases an exceptional blend of efficiency and versatility, making it suitable for multiple sectors, including hospitals, schools, hotels, laboratories, and industrial units. Its advanced multi-stage filtration effectively handles various water sources such as borewell, river, or municipal supply. With integrated features like high-quality membranes and automatic controls, the system delivers consistent results even in demanding applications. Stellar recovery and recycle rates ensure minimized water wastage, giving you a cost-effective solution with markedly low operational costs.

Main Domestic Market, Sample Policy, and Packaging Details

The 500 LPH RO Plant is quickly dispatched and supplied across the main domestic markets in India. Customers can request samples as per the company's sample policy for quality evaluation. Each unit is carefully packaged and securely handed over to ensure safe transit and delivery to your installation site. The robust packaging not only protects the system components but also facilitates seamless onsite installation, helping our partners achieve hassle-free operations from the first day.

FAQ's of 500 LPH RO Plant:

Q: How does the 500 LPH RO Plant ensure high-quality water output for various applications?

A: The plant utilizes multi-stage filtration with high-quality Thin Film Composite membranes, sediment, carbon, micro, and RO filters. This process ensures up to 99% contaminant removal, making the water suitable for drinking, laboratory, industrial, and institutional uses.

Q: What is the installation process for the 500 LPH RO Plant, and where can it be installed?

A: The system features a modular, floor-mounted design, which is suitable for installation in a variety of settings, including industrial plants, hospitals, schools, hotels, and commercial facilities. Onsite installation is available, with comprehensive support provided to ensure a smooth setup.

Q: When is the 500 LPH RO Plant ready for operation after supply and dispatch?

A: The plant is supplied with quick dispatch and securely handed over. Once received and professionally installed, operation can commence immediately following standard commissioning procedures and input water validation.

Q: What benefits does the programmable control (PLC) system offer to users?

A: The programmable logic controller (PLC) provides excellent system automation, process monitoring, and user-friendly operation. It enhances reliability by managing system safety features such as auto-flush, dry run protection, and pressure control, ensuring trouble-free performance.

Q: How cost-effective is the 500 LPH RO Plant for long-term operation?

A: The RO Plant's stellar recovery rate, integrated recycle features, and high efficiency minimize waste and energy consumption, making it a highly cost-effective choice for organizations aiming to reduce operational and water costs.
